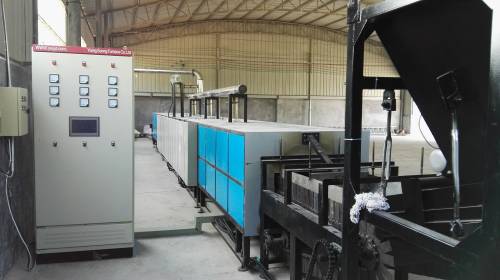

Mesh belt catalyst electrothermal roaster


Uses: Mainly used in petrochemical industries catalyst roast

The main technical parameters:

1. Furnace length: 21-40m

2. Holder section size: width 500-1.2m; high 120-200mm (can be customized according to requirements)

3. Drive mode: 310S metal mesh belt with a baffle, frequency conversion speed

4. Design the highest use temperature: 800 ° C

5. Common temperature: 400-650 ° C

6. Heating method: far infrared hot stone pipe network belt upper and lower heating

7. Electric power: 60-180KW / 380V

8. Control temperature: 4-8

9. Temperature temperature: PID fully automatic temperature control system, touch screen control interface 485 communication, automatic constant temperature, temperature adjustable, super temperature alarm and other superior performance.

10. Control temperature point accuracy: ± 1 ° C

11. Use fuel: natural gas, liquefied petroleum gas, light oil, heavy oil

12. Feed mode: furnace automatic feeder automatic cloth

13. Exhaust method: the stove power exhaust

14. Furnace structure: module assembly, 2-3 meters / festival

Please contact us for details, we will tailor!
