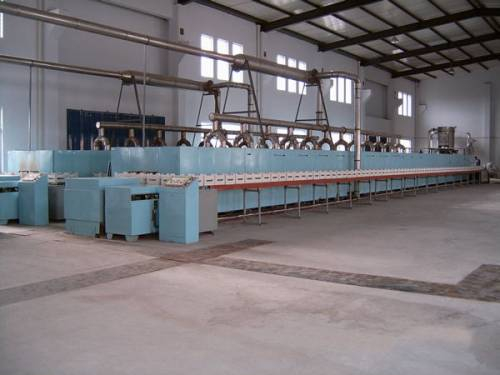

High-purity nickel powder, nickelous oxide calcining air pusher kiln

use:For high purity nickel powder, oxide calcination

The main technical parameters

1. Furnace length: 36M

2. Power: 500KW / 380V (adjustable)

3. Using the highest use temperature: 1200 ° C

4. Feed mode: two board double push

5. Steady energy consumption: ~ 120A / 380V / h

6. Heating temperature zone: 17 ~ 22, up and down temperature

7. Heating components: silicon carbon rod

8. Control mode: SCR control, smart meter PID continuous adjustment, PLC + touch screen automatic monitoring

9. Promotion mode: Automatic hydraulic promotion circulation system

10. Supported conventional push plate size (mm): 340 × 340

11. Supporting equipment: Automatic external circulation line

Please contact us with details.
