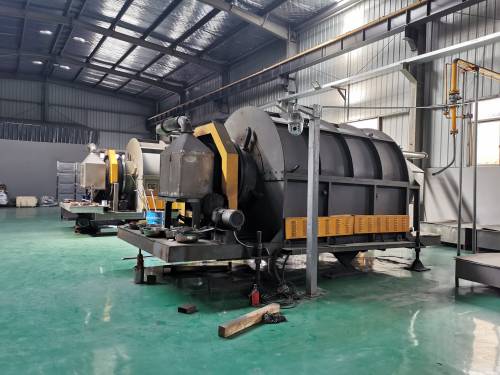

Cobalt, copper, nickel electronic material calcining rotary furnace

Availability:
Quantity:

use:Calcination for powder powder for cobalt, copper, nickel electronic material

The main technical parameters

1. Length of the furnace: 6-15m

2. Cylinder diameter: φ800-1200mm

3. Heating zone effective length: 4-12m

4. Power: 320-500KW / 380V (adjustable)

5. Using the highest use temperature: 900 ° C

6. Steady energy consumption: ~ 150A / 380V / h

7. Heating temperature zone: 2 ~ 3

8. Heating element: electric hot alloy wire

9. Control mode: SCR control, smart meter PID continuous adjustment, PLC + touch screen automatic monitoring

10. Rotation mode: gear variable frequency speed

11. Production method: intermittent, continuous

12. Supporting equipment: flue gas treatment equipment

Please contact us with details.
