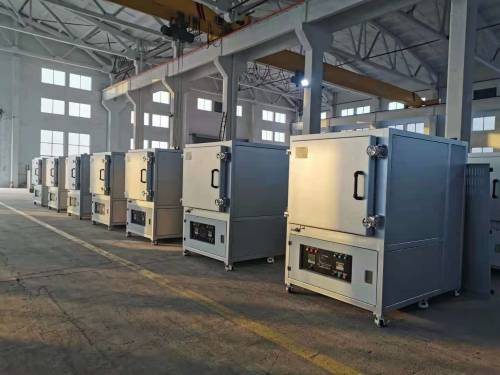

Box type infrared glass precision annealing furnace

Availability:
Quantity:

Equipment use

Mainly used for the precise annealing of infrared glass balls

Maximum temperature

 500 ° C

Usual temperature

 200 ° C-450 ° C

Furnace size

 0.3m3-0.5m3 (can be customized according to customer)

Inner gas atmosphere

 Air

控 温 点

 1 o'clock

Instrument control temperature accuracy

 ± 0.1 ° C

Furnace temperature stability

 ≤ ± 1 ° C

Uniform temperature in the furnace

 ≤ ± 3 ° C

加 热 器

Resistance wire

Temperature control control system

 PID program (50 paragraph) closed-loop intelligent temperature control; touch screen control interface

Furnace liner material

 SUS310S heat-resistant stainless steel liner

Features

 1. The temperature precision of the furnace is accurate, the homogeneity of the furnace temperature is high, and the product consistency is good.

 2. High temperature resistance cycle fan is used.

 3. Furnace height cleanup guarantee no secondary pollution

备   注

 The above parameters are for reference only, this equipment is non-standard equipment, which is customized according to the actual process requirements of the product.
