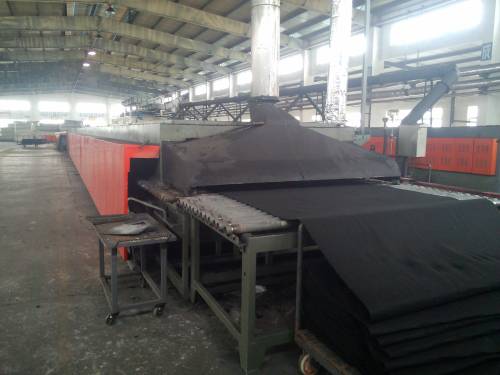

Atmosphere protection activated carbon fiber cloth carbonization furnace

Availability:
Quantity:

  use:Carbonization in graphite atmosphere of lithium battery negative material

The main technical parameters

1. Length of the furnace: 50 ~ 60m

2. Feed mode: 4 ~  6 crucibles parallel into kiln

3. Power: 800 ~ 900KW / 380V (adjustable)

4. Using the highest use: 1250 ° C

5. Common Process Temperature: 800-1150 ° C

6. Steady energy consumption: 300-500A / 380V / h

7. Heating temperature zone: 18 ~ 25, 36 ~ 50 points, control temperature up and down

8. Heating element: equilateral silicon carbon rod

9. Sealing: front and rear double gate + replacement chamber seal + rotary seal

10. Control mode: SCR control, smart meter PID continuous adjustment, PLC + touch screen automatic monitoring

11. Transfer method: variable frequency motor + reducer + slope gear + roller stick

12. Inner atmosphere: nitrogen protection

13. Supporting equipment: external circulation mechanism + automatic upper and lower machine

14. Yield: 2000 ~ 2500 tons

Please contact us with details.
