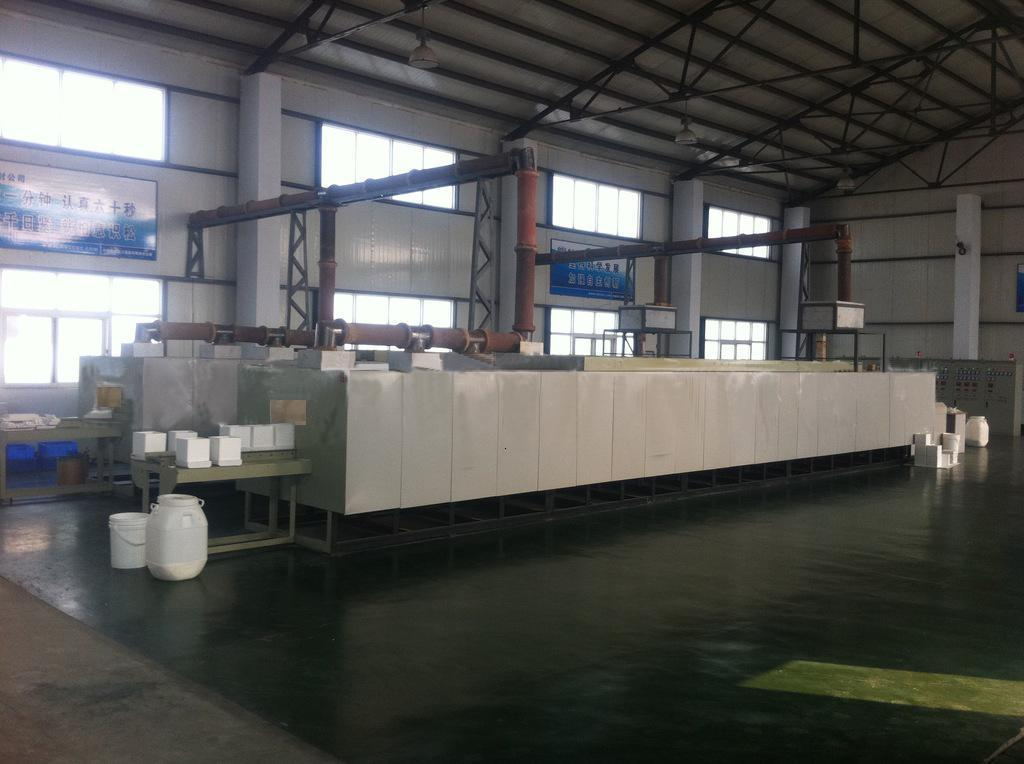

1700℃ single-hole zirconia products sintering pusher kiln


Equipment use

 High temperature sintering for zirconia structure ceramics, corundum ceramic products

Maximum temperature

 1700 ° C

Furnace size

 9000LX300WX270H (other size can be customized)

Inner gas atmosphere


加 热 器

 U-shaped silicon molybdenum rod


1, multi-layered palletty, through the push plate continuously handle, the product sequentially through the temperature rise zone, the constant temperature zone, the cooling area, and realizes continuous sintering.

2, the push booth is a continuous sintering furnace, providing different furnace temperature zones and lengths according to the product temperature process curve, suitable for large quantities, product workers

 Art stability, good performance.

3, the transmission system adopts hydraulic transmission, stable operation, no jitter, crawling.

4, use both side surface vertical heating mode, so that the product is uniform.

5. Implement the automatic rotation operation, using PLC control, product operation is reliable.

备       注

 The above parameters are for reference only, this device is non-standard equipment, which is customized according to the actual process requirements of the product.
