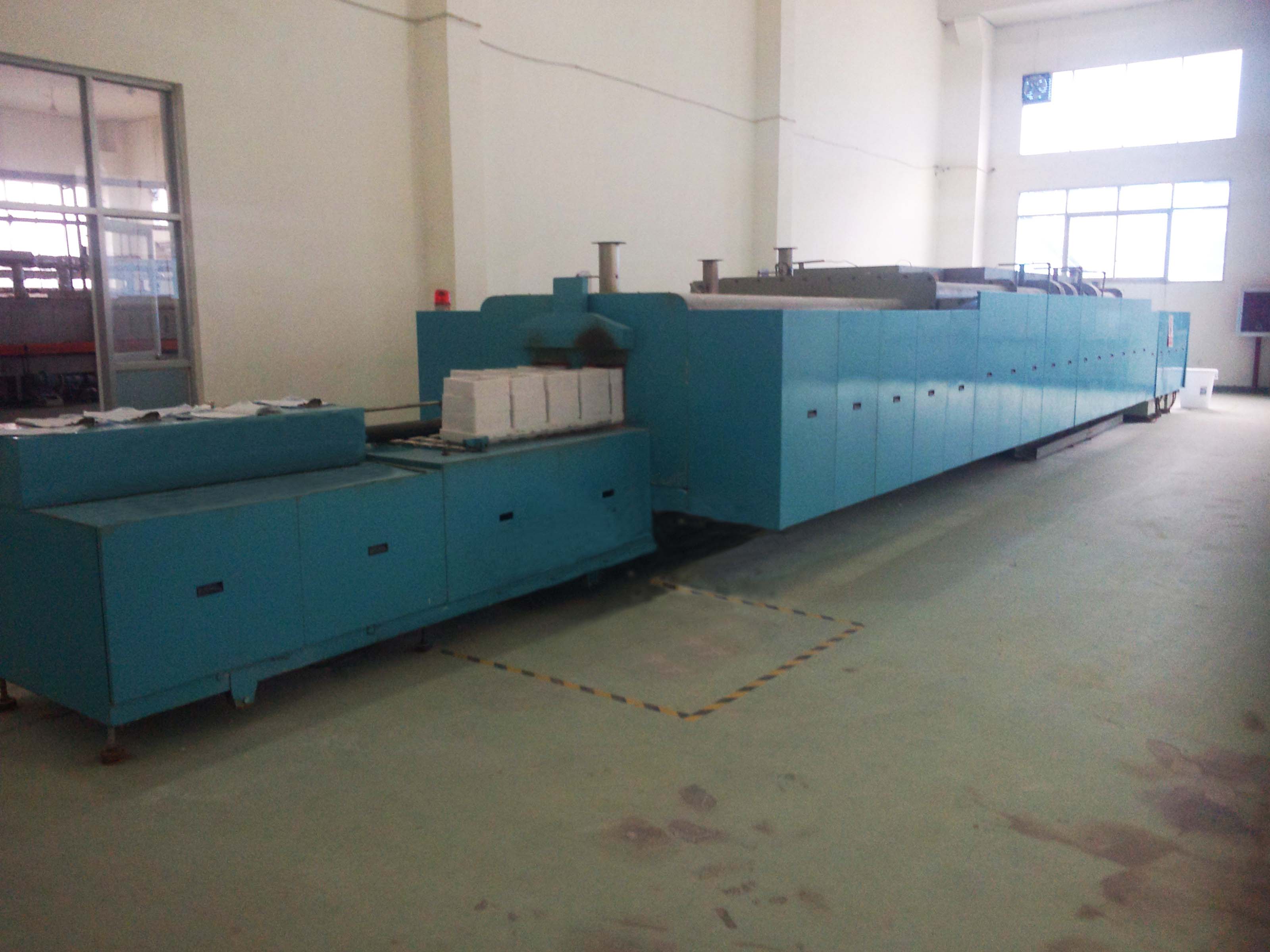

1700℃ Double-hole reverse push zirconia products sintering furnace


Equipment use

 High temperature sintering for zirconia products

Maximum temperature

 1750 ° C

Furnace size

 13500LX (360x2) WX330H (other size can be customized)

Inner gas atmosphere


加 热 器

 U-type silicon carbon rod, U-shaped silicon molybdenum rod


 1. The product is placed on the labeling board multi-layer pallet, and the product is continuously handled through the push plate, and the product sequentially through the temperature rise zone, the constant temperature zone, the cooling area, and realizes continuous burning.


 2, the push booth is a continuous sintering furnace, providing different furnace temperature zones and lengths according to the product temperature process curve, suitable for large quantities, product workers

   Art stability, good performance.

 3. The transmission system uses mechanical transmissions, stable, jitter, crawling.

 4, use both side surface vertical heating mode, so that the product is uniform.

 5, dual-channel reverse push furnace is a new type of energy-saving resistance furnace, and the furnace is cross-section, which is easy to exchange, temperature control.

 6, in the double-hole channel, the product is synchronized, using the cooling residual heat portion by the temperature absorption and utilization, energy consumption 20% ~ 30% compared to single channel energy saving.

 7. Realize the automatic rotation operation, using PLC control, product operation is reliable.

备       注

 The above parameters are for reference only, this device is non-standard equipment, which is customized according to the actual process requirements of the product.
