| Quantity: | |
|---|---|

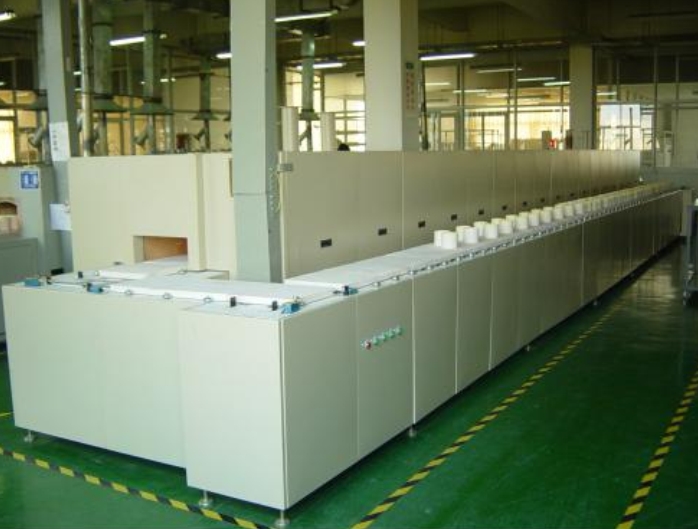

Equipment use | Sinterry for alumina ceramic products and components |
Maximum temperature | 1400 ° C |
Furnace size | 12500LX360WX350H (can be customized according to requirements) |
Inner gas atmosphere | Air |
Heater | U-type silicon carbon rod |
Features | 1. Multi-layer palletizing can be realized, and the product is sequentially enhanced by temperature rise zones, thermostatic zones, cooling regions to achieve continuous sintering. 2, the push booth is a continuous sintering furnace, providing different furnace temperature zones and lengths according to the product temperature process curve, suitable for large quantities, product workers Art stability, good performance. 3, the transmission system adopts hydraulic transmission, stable operation, no jitter, crawling. 4, use both side surface vertical heating mode, so that the product is uniform. 5. Implement the automatic rotation operation, using PLC control, product operation is reliable. |
Remarks | The above parameters are for reference only, this device is non-standard equipment, which is customized according to the actual process requirements of the product. |
