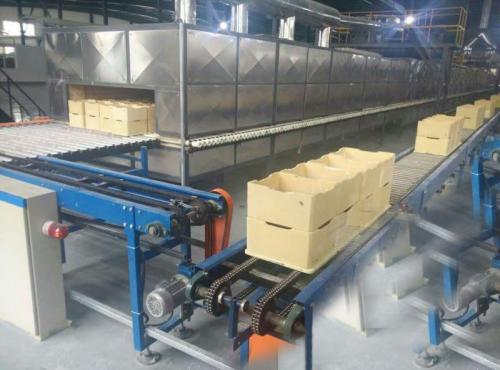

1200℃ rare earth calcining electric heating roller kiln

Availability:
Quantity:

use:Calcination of rare earth raw materials such as rare earth magnetic materials, rare earth ceramics, rare earth catalyst materials

The main technical parameters

1. Length of the furnace: 32 ~ 48m

2. Feed mode: 3-6 坩 坩 单 (double) layers are parallel into kiln

3. Power: 300 ~ 500KW / 380V (adjustable)

4. Using the highest use: 1250 ° C

5. Common Process Temperature: 600-1200 ° C

6. Steady energy consumption: 210-300A / 380V / h

7. Heating temperature zone: 18 ~ 25, 36 ~ 50 points, control temperature up and down

8. Heating components: high temperature electric hot alloy wire + diameter silicon carbon rod

9. Sealing: front and rear lifting furnace door

10. Control mode: SCR control, smart meter PID continuous adjustment, PLC + touch screen automatic monitoring

11. Transfer method: variable frequency motor + reducer + slope gear + roller stick

12. Inner atmosphere: air

13. Supporting equipment: external circulation mechanism + automatic upper and lower machine

14. Yield: 1000 ~ 2500 tons

Please contact us with details.
